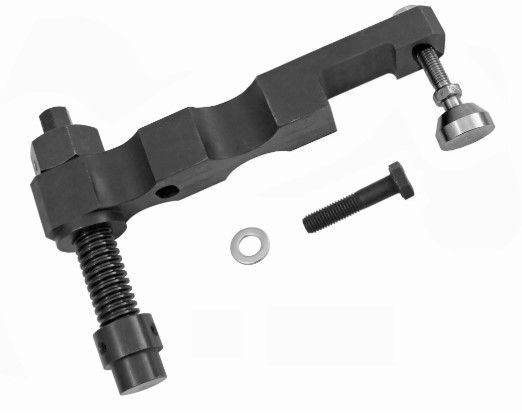

Cummins 5394735 Fuel Injector Sleeve Ring Installer

Designed to install the fuel injector sleeve expansion ring, eliminating leakage between the fuel and coolant systems. By expanding the top of the sleeve, the unique ring regains the sealing capacity, preventing the need for a cylinder head replacement due to leaking sleeves.
Applications:
ISX15 CM2250
ISX15 CM2250 SN
ISX15 CM2350 X101
PowerGen QSX15 CM2250
PowerGen QSX15 CM2250 ECF
QSX15 CM2250 ECF
QSX15 CM2250 X115
QSX15 CM2350 X105
QSX15 CM2350 X106
X15 CM2350 X116B
X15 CM2350X114B

Compatibility: Works with retaining/expansion ring 4312298

Kit Includes:
3910497 Socket Head Cap Screw
3946377 Hexagon Head Cap Screw
3968031 Plain Washer
5394731 Installer Plate
5394732 Installer Plate
5394946 Roll Pin
